PRESSURE AND DIFFERENTIAL PRESSURE TRANSMITTERS
Field-Proven and World Wide recognized thanks to its Highest Reliability
The FCX Series has been adopted into various process industries throughout the world. The pursuit of reliability and ease of use, in addition to higher accuracy and quicker response, are culminated in our newest FCX-A IV series.
The FCX-A IV series certified under the Functional Safety Certificate IEC 61508 SIL2/SIL3.
- Excellent reliability through high accuracy measurement and long term stability
- Best-in-class 40ms measurement cycle
- Obtained Functional Safety Certification (IEC 61508 SIL2/SIL3)

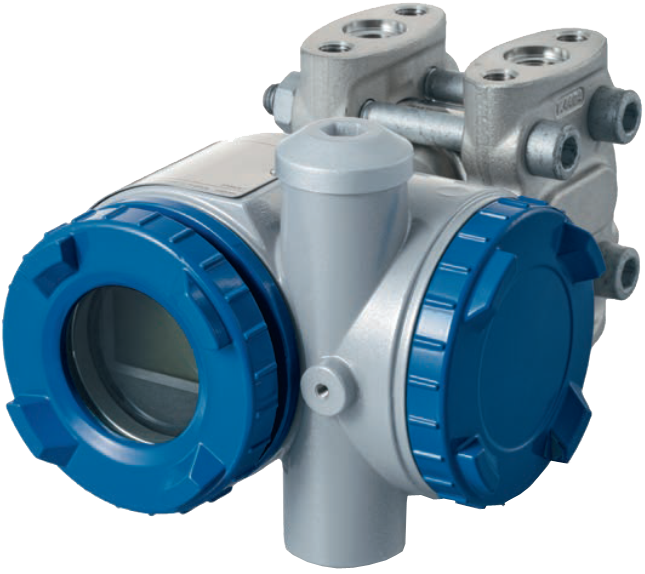

Differential Pressure (Flow) Transmitters
Excellent reliability through high accuracy measurement and long term stability
Best-in-class 40ms measurement cycle
Obtained Functional Safety Certification (IEC 61508 SIL2/SIL3)

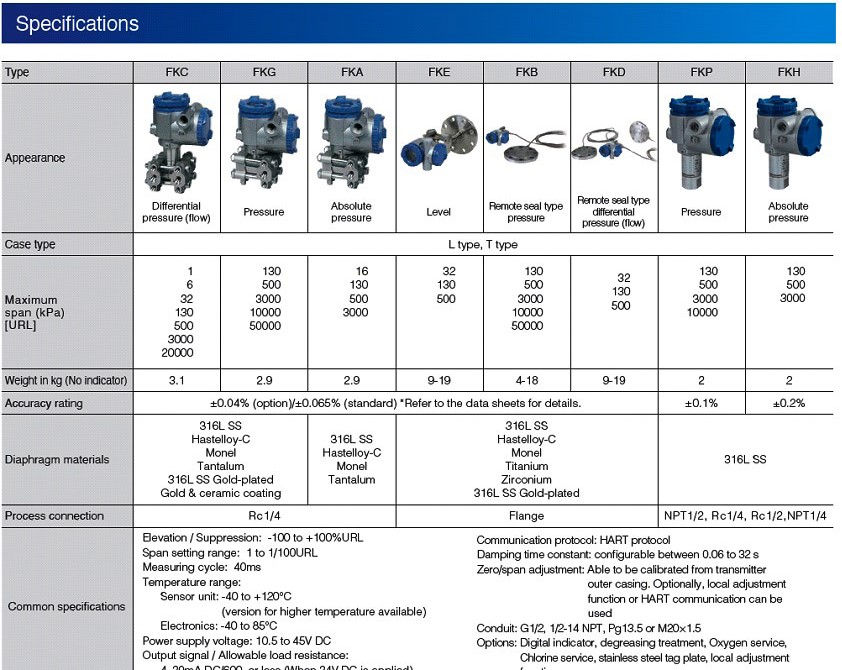

Specification
Elevation / Suppression: -100 to + 100%URL
Span setting range: 1 to 1/100URL
Measuring cycle: 40ms
Temperature range:
Sensor unit: -40 to+ 120°c
Common specifications (version for higher temperature available)
Electronics: -40 to 85°C
Power supply voltage: 10.5 to 45V DC
Output signal / Allowable load resistance:
4- 20mA DC/600 or less (When 24V DC is applied)
Communication protocol: HART protocol
Damping time constant: configurable between 0.06 to 32 s
Zero/span adjustment: Able to be calibrated from transmitter outer casing. Optionally, local adjustment function or HART communication can be used
Conduit: G1/2, 1/2-14 NPT, Pg13.5 or M20x1.5
Options: Digital indicator, degreasing treatment, Oxygen service, Chlorine service, stainless steel tag plate, local adjustment function
Manifold for Pressure Transmitter
FCX Series Pressure Transmitters can be fitted with a manifold block to isolate the sensor from the Pressure Measurement, to Calibrate the Pressure Probe and to purge the liquid or gas.
Manifolds can be supplied Directly Mounted on Transmitters or as Accessories.
If the Manifold is mounted on the Transmitter, the leak test and Calibration Operation are carried out on the assembly.
We offer a range of Manifolds from 1 to 5 channels.
LEVEL TRANSMITTERS
Highly Accurate Level Measurement
- High accuracy: ±0.2%
- Detector for sewage water available
- Measures water level from 1.5 m to 50 m
- Powerful built-in arrester
For clean water, sewage water, well, river, etc.
Flange Type Level Transmitter
Measuring Span : 0.32–500 kPa
Water Level Transmitter
GAS ANALYZER
Analyzing Air Pollution is the first step toward Preserving a Clean Atmospheric Environment.
FUJI developed the first infrared gas analyzer in Japan to use mass-flow sensors. Since then, we have supplied customers with various types of gas analyzers to support environmental preservation and control efforts. These efforts include measurements of atmospheric pollution and detection of low density of SOx and NOx, generated by incinerating facilities and boilers. FUJI’s gas analyzers are widely used to monitor the atmosphere to help maintain a cleaner natural environment.

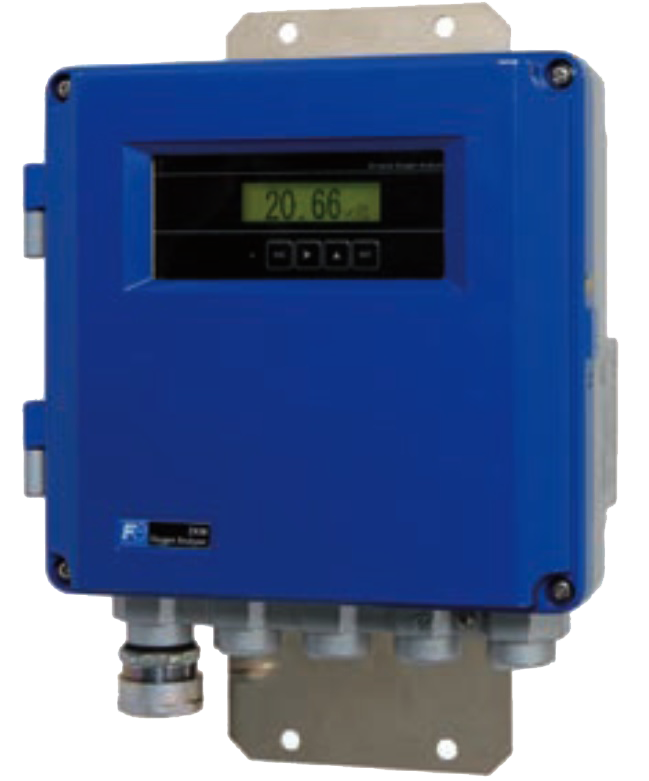

Zirconia Oxygen Analyzers
Fast response without the need for gas sampling devices Ideal for combustion control in boilers and incinerators
Features
■ Easily replaceable zirconia element
■ Fast response (4–7 seconds)
■ IP66 or IP67 enclosure
■ RS85 or HART communication
Flue Gas Analyzer System
Continuous Monitoring of up to 5 Components:
NOx, SO2, CO, CO2, and O2
Ideal for Flue Gas Monitoring in Waste Incinerators, Boilers, And Furnaces
- Space-saving design
- A variety of functions: auto calibration, O2-corrected output, averaging, alarm, etc.
- Japanese type approval

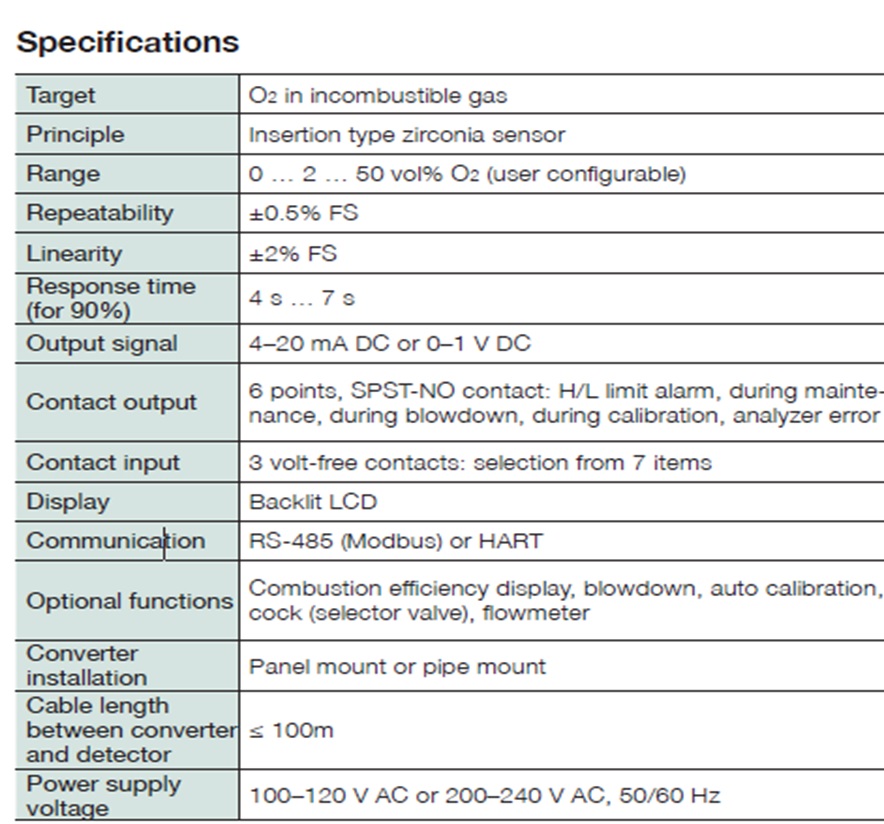

In-Situ Zirconia Oxygen Analyzer System
Continuous Measurement of O2 in Flue Gas from Industrial Boilers or Furnaces
Ideal for Combustion Control
- Fast response
Insertion type detector eliminates the need for sampling devices such as suction pump or gas dryer - The ingeniously designed flow guide tube provides rapid response within 10 seconds.
- Low maintenance
Automatic calibration and automatic/manual blowdown are provided as standard, reducing maintenance work - A variety of inputs and outputs
4–20 mA DC analog output, 6 contact outputs, 3 contact inputs, RS-485 communication - Easy to operate
You can interactively operate the Analyzer or set parameters through LCD and keys.

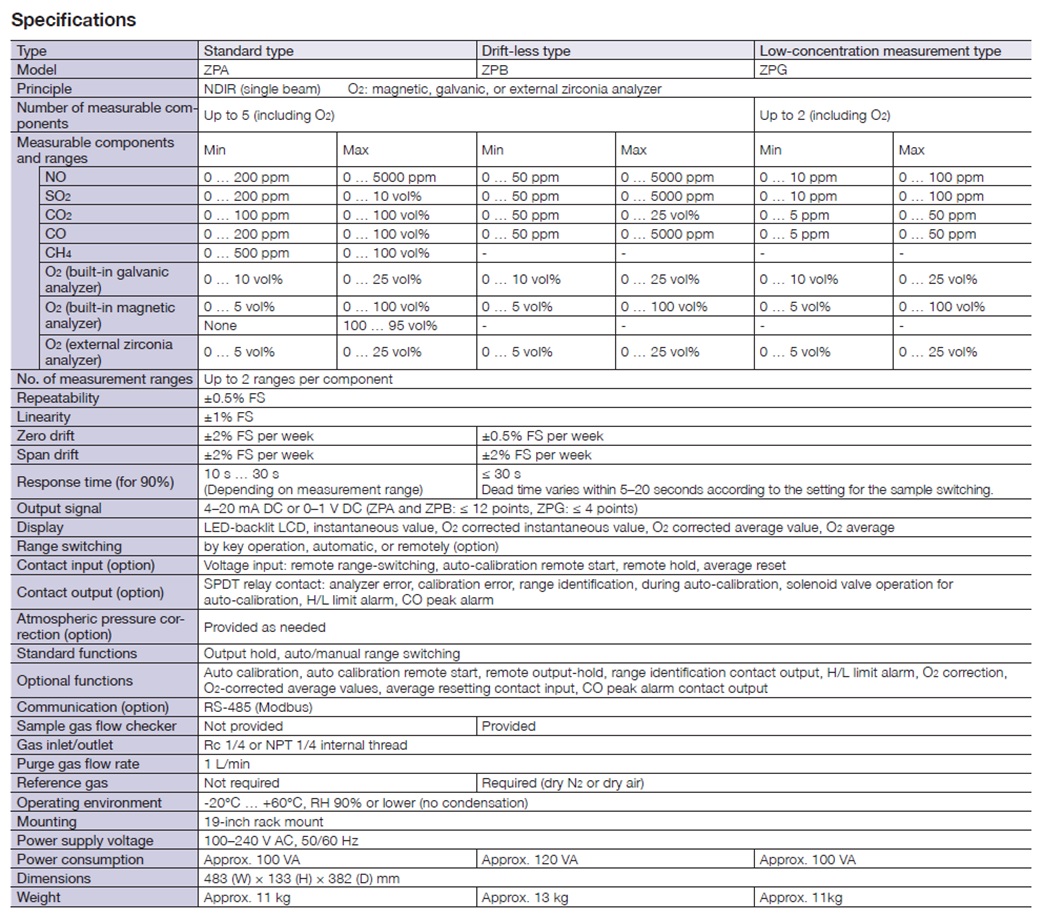

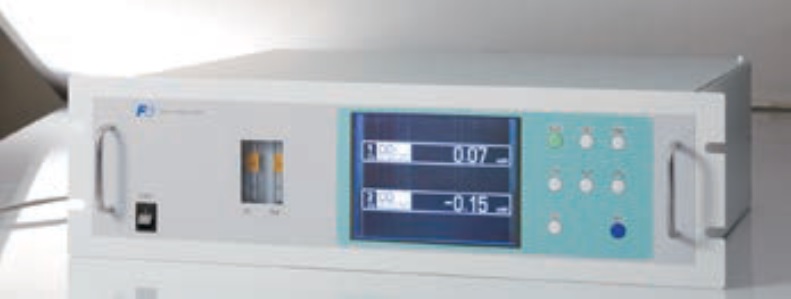

NDIR GAS ANALYZER
Features
■ Wide measurement range: from 0–5 ppm to 100%
■ Excellent zero-point stability: ±0.5% FS per week (ZPB, ZPG)
■ Simultaneous and continuous measurement of up to 5 components
(ZPA, ZPB)
■ Compact and lightweight: 483 (W) × 133 (H) × 382 (D) mm, ≤ 13 kg
■ Simple structure for easy maintenance
■ Built-in magnetic or galvanic O2 sensor (optional
TEMPERATURE CONTROLLER
PXR4, PXR5, PXR7, and PXR9 were discontinued and replaced by PXF series. Only PXR3 is available.
We offer a wide variety of temperature controllers to meet your needs.
Explore our products and find the best for your application.
Our latest temperature controller PXF has won the Good Design Award 2017.
(hosted by the Japan Institute for Design Promotion)
ULTRASONIC FLOW METER
Easy and Accurate Flow Measurement without Interrupting The Process
Clamp-on Type Sensor easily Mountable on existing Pipe Suited for a wide range of liquids, for example, Deionized Water, Cooling Water, Chemical Solution, Drinking Water, Sea Water, Oil, Tap Water, Hot Water, Industrial Water, Corrosive Liquids. Ultrasonic Flowmeter for Air is also available
Ultrasonic Flowmeter for Steam
Clamp-On Type Saturated Steam Flow Measurements
Transmitter（FSJ）
Detector（FSX）
Contributes to “Visualization” of Steam Flow and works in Combination with EMS to optimize energy and achieve energy savings.
- Installable without turning off steam line
- No piping work required
- Effective use of steam energy without pressure loss
- Less maintenance costs due to no moving parts
Ideal for Compressor Control Applicable Pipe Diameter: 25–200 mm
- No pressure loss = no energy loss
- Tolerant to oil and mist – No need for filter such as mist separator
- Lithium-ion battery driven version available
Battery life: approx. 10 years - Flow rate conversion
Actual flow rates are converted into those in normal or standard conditions. - Forward/reverse flow measurement
- Air leakage detection
Ultrasonic Flowmeter for Air
PORTABLE ULTRASONIC FLOWMETER
Compact and handy
- High accuracy ±1.0% of rate and fast response ≤ 1 s
- A wide variety of detectors
- Tolerant to bubbles
- Battery-powered, for 12 hours
- Data storage on SD card
- USB port for connection with PC
- Consumed energy calculation
- Printer (option)
Flow velocity profile (option)
