E Instruments is a manufacturer, distributor and service provider of Test Equipments and Portable Emission Analysers working in the industry since past 25 years.
E Instruments has a reputation for safety, durability and has very strict standards of quality the company has an ISO 9001:2008 quality system in place which covers every aspect of it’s activity
CSE introduced E Instruments’ Gas Analyzers in Pakistan and sold more than 500 units to different Industries E Instruments Infrared Thermometers are also very successful in Pakistan and almost all Glass Plants and many Cement Plant are using these

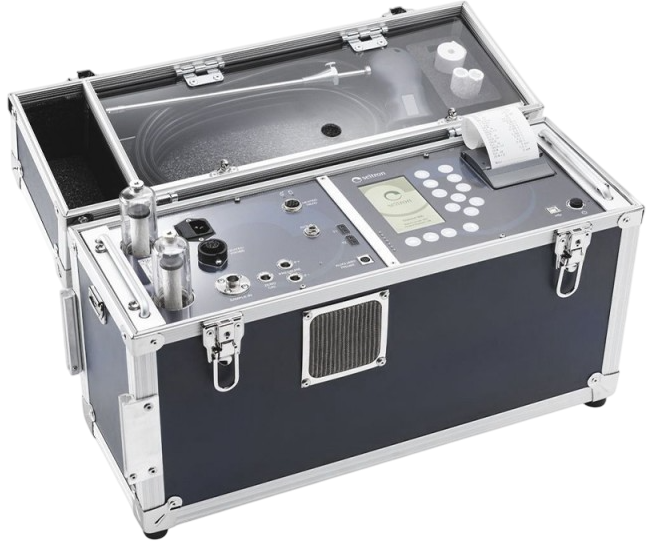

C900 FIXED MULTI GAS PORTABLE
Up to 12 Gases
The C900 Industrial Analyzer is able to measure and memorize the amount of Gaseous Emissions during the operating cycle of Industrial Plants, it can also calculate the efficiency of the machines during Combustion Processes.
TECHNICAL SPECIFICATION
Temperature/measure field
Gas, combustion air, external air and other auxiliary temperatures
Power supply
From internal lithium ion batteries or from 90 .. 260 Vac mains
Pressure measurement
Positive, negative and differential
Bluetooth
Bluetooth® class 1
Fuels
11 pre-loaded + 16 more user programmable
Standard compliant
EN 50379-1, EN 50379-2, UNI 10389-1
Pump
Suction and second gas dilution pump withdrawn
C600 HANDHELD PORTABLE
Up to 6 Gases
Emission Analyzer
- Integrated thermal printer on unalterable polyester
- Ability to choose from 15 gas sensors
- Predisposed as standard for UNI 7129/UNI 11137 leak test (with AAKT04 accessory, not supplied)
- Automatic calculation of the gas pipe volume (with AAKT04 accessory, not supplied)
- 13 pre-programmed fuels (including wood, pellets, biogas and coal)
Technical Specifications
Temperature/Measure field
Gas, outside air, ambient air
Size/weight
310Ax90Lx60P mm – 1,1 kg
Battery
Li-ion rechargeable
Display
Backlit color LCD
Gas sensors
Field replaceable pre-calibrated
Pressure measurement
Positive, negative and differential
Memory
For 2000 complete analyses
Fuels
15 pre-loaded + another 16 programmable by the user
Protective shell
In TVP
Standard compliant
EN 50379-1, EN 50379-2, UNI 10389-1
Pump
Suction and second gas dilution pump withdrawn
C100 HANDHELD PORTABLE
Up to 3 Gases
- 2 sensors (O2 range 0..25% v/v + CO range 0..4000 ppm) – Not expandable
- Tightness test UNI 7129 (2015) / UNI 11137 (2019)
- Draught UNI 10845 (2018)
- 15 pre-loaded fuels (including wood, pellets, biogas and coal)
Technical Specifications
Temperature / Measure Field
Ambient and external fumes
Size/weight
70x60x170 mm – 0,35 Kg
Battery
Rechargeable Lithium Ion
CO cell
Resolution 1ppm
Gas sensors
Precalibrated
Pressure measurement
Relative and differential
Yield calculation
(>100% on the PCI) according to UNI 10389-1
Calculation
CO2, boiler efficiency (including condensation), chimney loss, excess air
Memory
5 complete analyses
Instrument autonomy
10 hours of continuous operation
Bluetooth
Class 1 (up to 100m)
Self-diagnosis
Checking the functions and status of the sensors
Fuels
15 pre-programmed
Protective shell
In EVA with magnets
Standard compliant
EN 50379-1, EN 50379-2 e UNI 10389-1

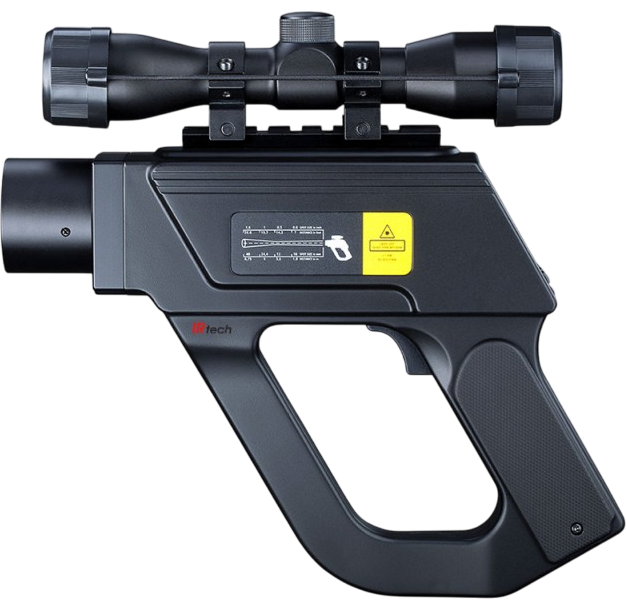

INFRARED LASER PRO1100
Advanced Professional Portable Pyrometer with Telescope
- Temperature range up to 1800°C
- Dual laser pointer
- Emissivity settings
- Datalogger up to 2000 measures
- Max, Min, Alarms audible features
Technical Specifications
Temperature/measure field
From 0°C to 2000°C
Precision
±1% or ±2°C; ±(0,3% rdg or±1°C)
Repeatability
±0,5% or ±1°C; ±(0,1% or ±1°C)
Optical resolution
Up to 300:1
Response time
Up to 300 mS
Storage
From -20°C to +60°C ( no battery )
Spectral band
8-14μm, 1μm, 1.6μm, 2.3μm
Emissivity/Transmittance
Pre-set to 0.950. Adjustable 0.100 – 1.000
Interface
USB
Laser
Class II (<1mW) single or double
Size/weight
264 mm x 203 mm x 60 mm – 980/990 g nett
Battery
NiMH rechargeable battery
Battery life
5 hours with laser/backlight on; 25 hours without laser and backlight
Work temperature
0 a +50°C / 10-95% RH non condensing
Functions
Max, Min and Scan/Hold

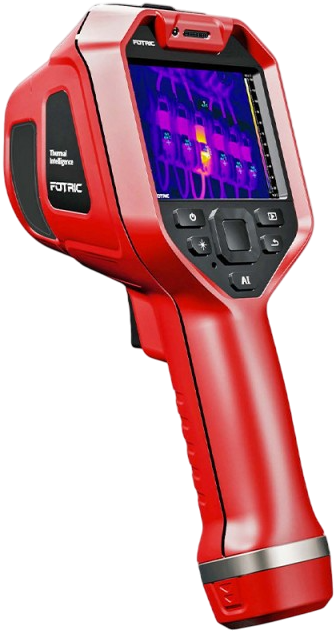

PORTABLE 321F
Fixed Focus Handheld Thermal Imaging Camera
- Temperature range from -20°C up to 550°C
- Easy to use: autorange, hotspots, areas
- Mix/PictureInPicture (IR with Visible) technology
- Video storage and Radiometric Images on TF 64 Gb memory card
Integrated Voice annotation, text and QR code
TECHNICAL SPECIFICATIONS
Temperature/measure field
From -20°C to 550°C
Interface
USB-C 3.0, Bluetooth, Wifi e HDMI
Size/weight
243mm*95mm*142mm – 730g incl. battery
Battery
3.6V，5000mAh Li-battery
Relative humidity
<95%RH
Vibrations & Shocks
2g(GB/T 2423.10/IEC 60068-2-6); 25g(GB/T 2423.5/IEC 60068-2-27)
Power supply
Support Type-C interface charging method, from power adaptor or computer
Thermal resolution
Up to 320×240 (30Hz)
Image resolution
Up to 640×480
Thermal Sensitivity
NETD 0,04 / 0,06 °C
Display
LCD Touch da 3,5″
