CONTROL VALVE

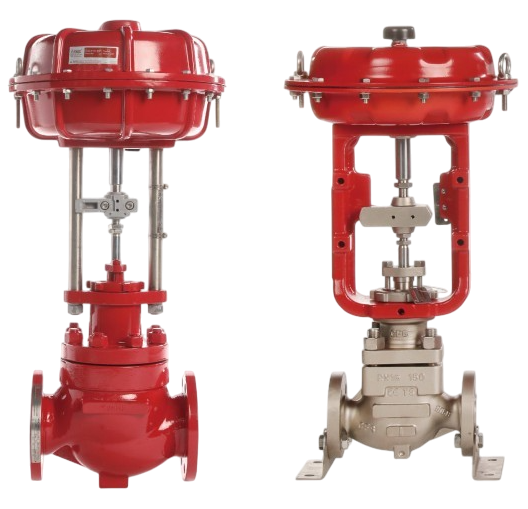

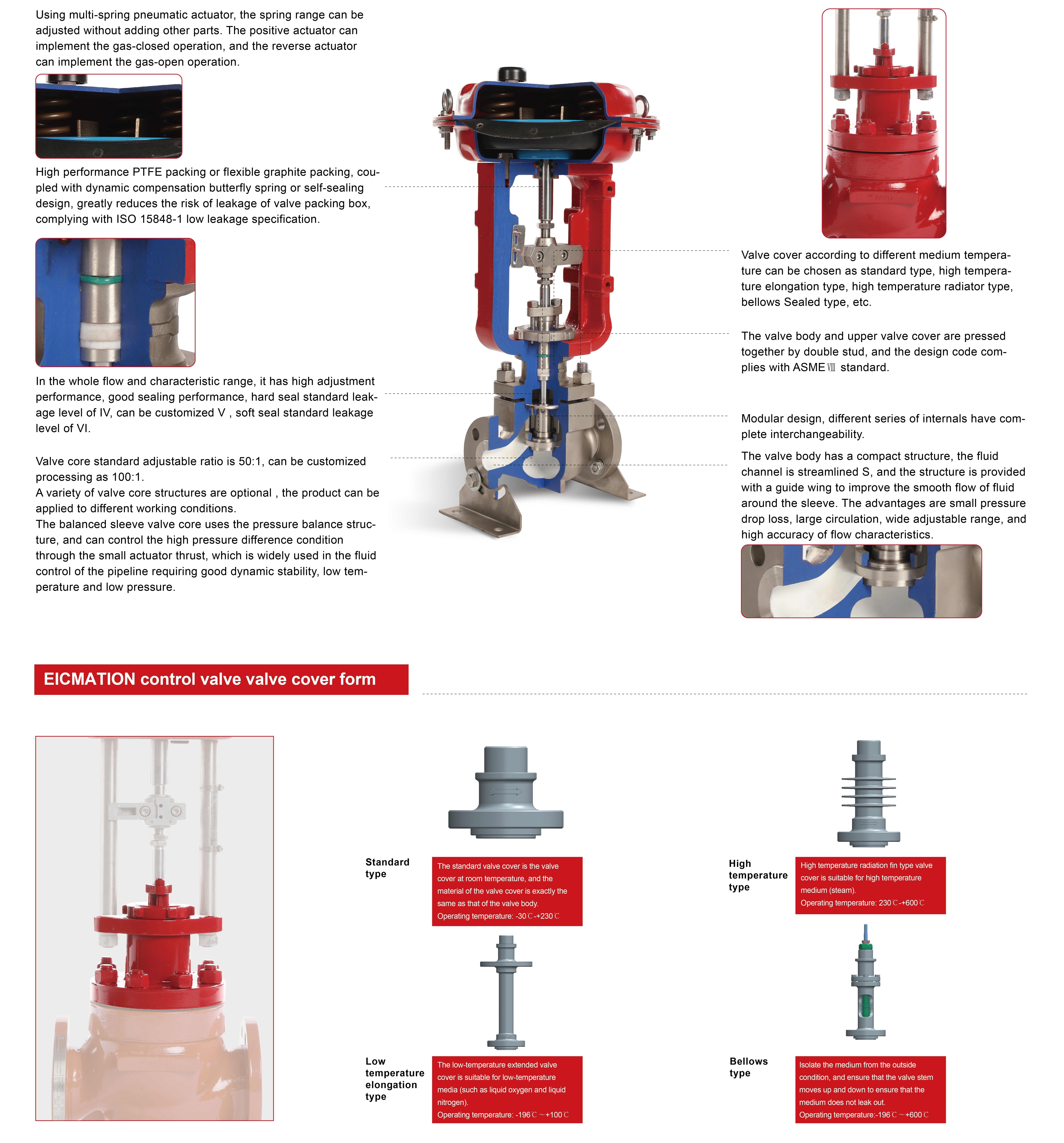

Single-Seat Control Valve
The T-series Control Valve is a Modular, Spherical Valve widely used in Process Control for its reliability and adaptability to various working conditions. It includes two main types: TA unbalanced Single-Seated Valves, which feature a Top-Guided design, High Strength, Large Flow Capacity, and long service life; and TG balanced sleeve Single-Seated Valves, which use a Pressure-Balanced spool for Heavy-Load, High-Leakage-Control applications, offering stable performance and reduced Actuator force requirements. The TG design also extends to specialized Low-Noise and Multi-Stage Pressure-Reducing Variants, including the TI, TJ, and TQ series.

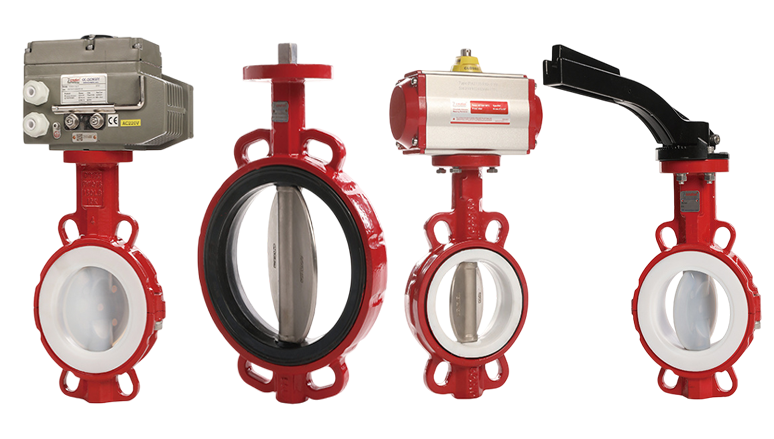

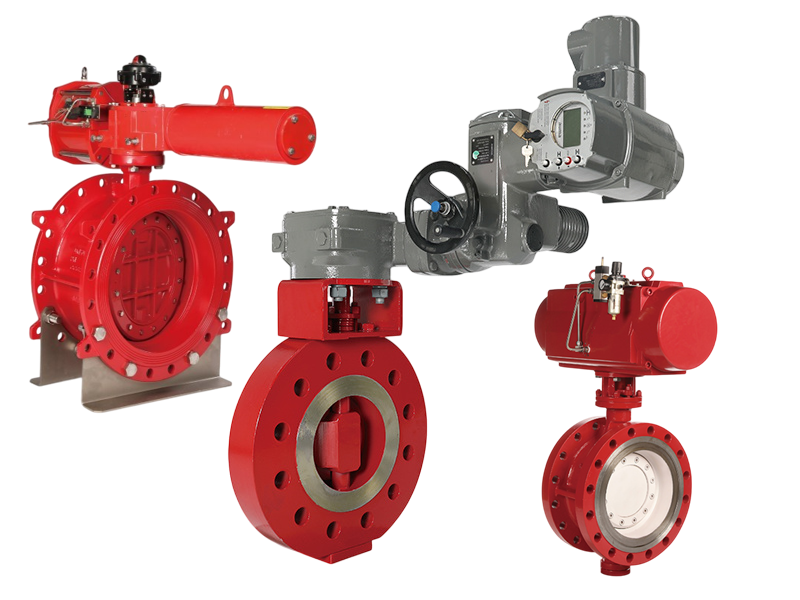

BUTTERFLY VALVE
FA/F Bseries Midline soft seal butterfly valve has the advantages of simple structure, small flow resistance coefficient, no retention of debris, light weight, easy installation, and small driving torque. It can be used to cut off the medium and adjust the flow of the medium.
Technical Parameter
Nominal diameter: DN40～DN2000
Nominal pressure: PN6～25, 150Lb
Valve body material: GGG40, WCB, CF8, CF8M, CF3M, duplex steel, aluminum alloy and so on.
Seal: NBR/EPDM/PTFE
Operating Temperature: -40~150°C
Working pressure: Max.25bar
Vacuum pressure: Absolute pressure 1KPa (customized)

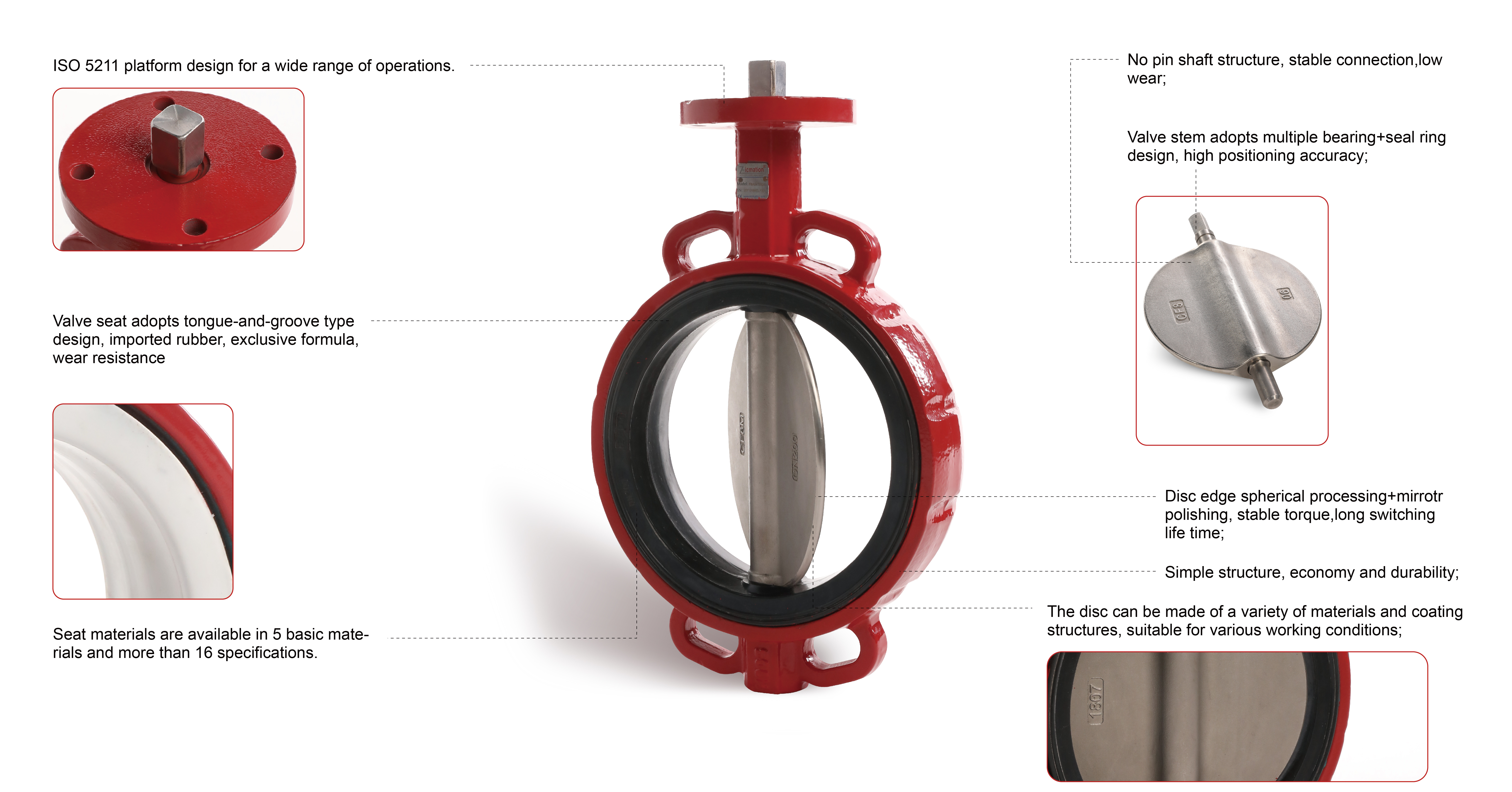

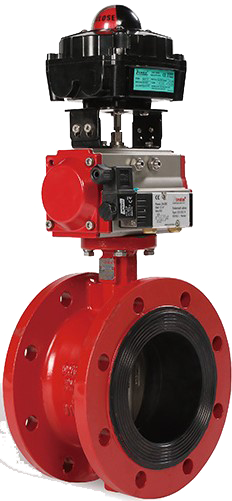

Concentric Butterfly Valve
Product Structure Description

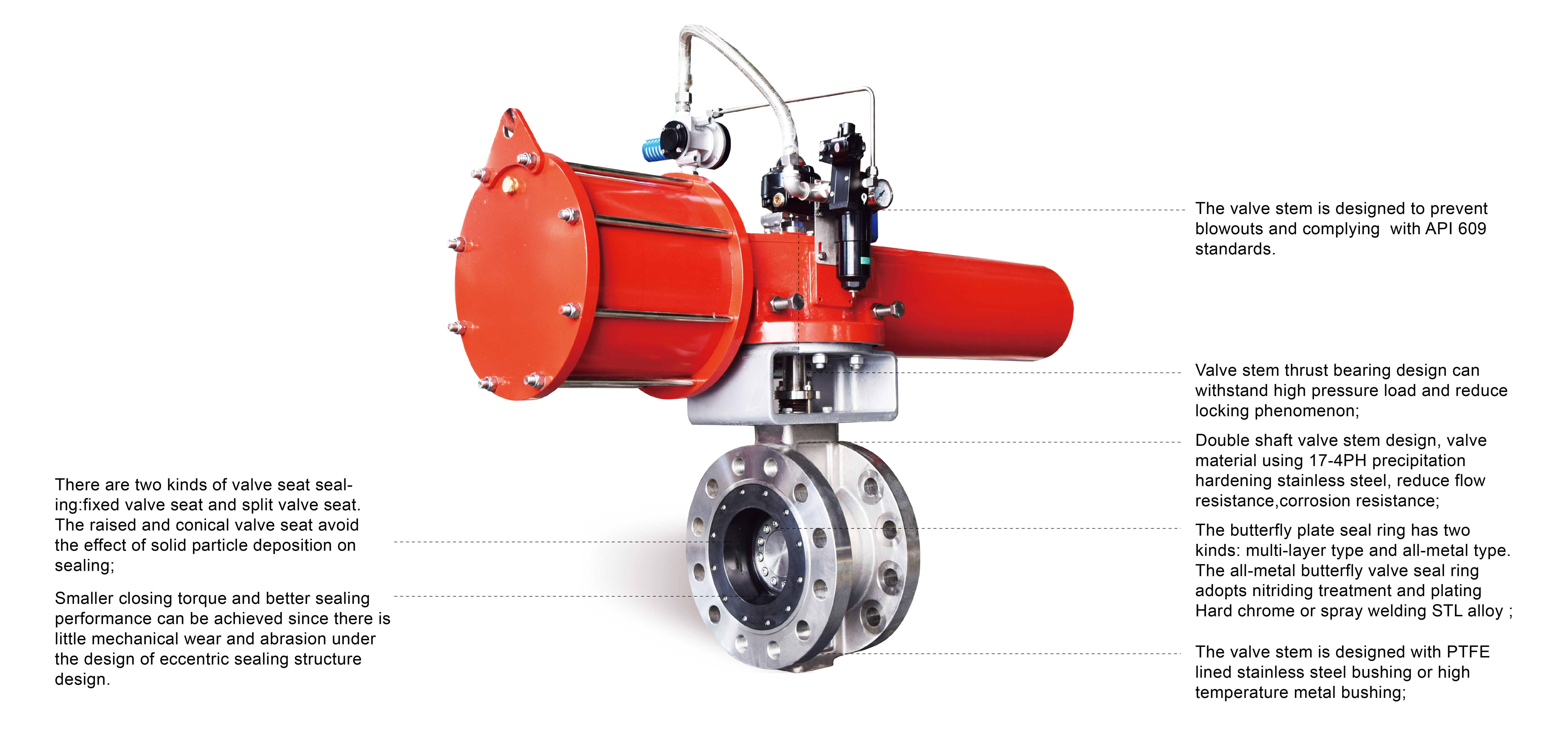

Triple Eccentric Butterfly Valve
FM/FN、FU/FV series Triple Eccentric Butterfly Valve Design advanced, no mechanical wear and abrasion, its closing torque is small , good cutting performance, widely used in Petroleum, Chemical, Electric Power and other Industrial Automation Control System. The series of Triple Eccentric Butterfly Valves have multi-level metal sealed Triple Eccentric Butterfly Valves and all-metal hard sealed Triple Eccentric Butterfly Valves.
Technical Parameter
Nominal Diameter: DN80～DN2400
Nominal Pressure: PN10~250, 150Lb~1500Lb
Connection: Clamping type, lug type, flange type, welded type
Valve Body Material: WCB, CF8, CF8M, CF3M, duplex steel, etc.
Valve Seat Material: SS+RPTFE, SS+graphite, all-metal+hardening treatment

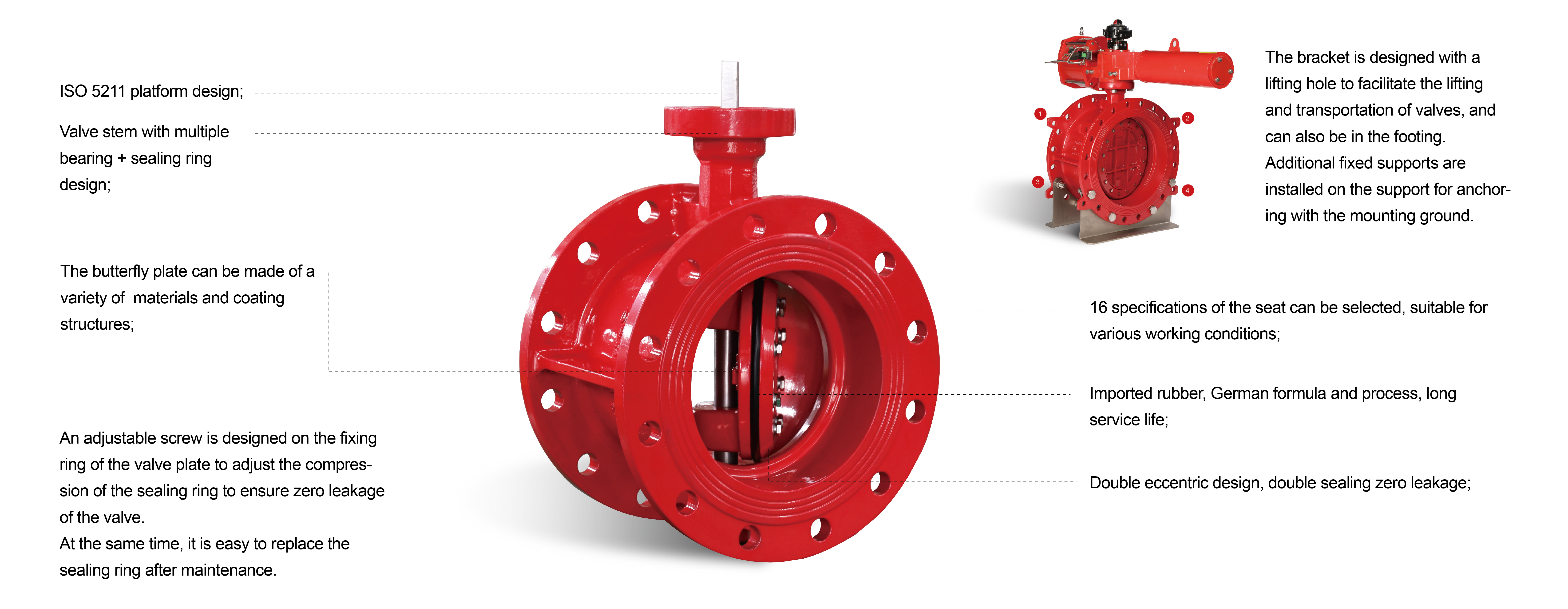

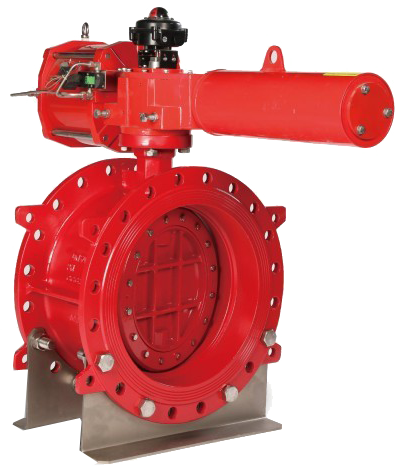

Double Eccentric Butterfly Valve(For water)
Double eccentric butterfly valve(For water) Suitable for waterway pipeline, with good regulating performance, sealing, economic durability.
Technical Parameter
Nominal diameter: DN150~DN3000
Nominal pressure: PN6~16
Connection form: flange
Valve body material: GGG50, CF8, CF8M, duplex steel, etc.
Valve plate material: GGG50, CF8, CF8M, duplex steel, etc.
Seat material: NBR, EPDM, VITON
Working temperature: 0~80℃.
Product Structure Description

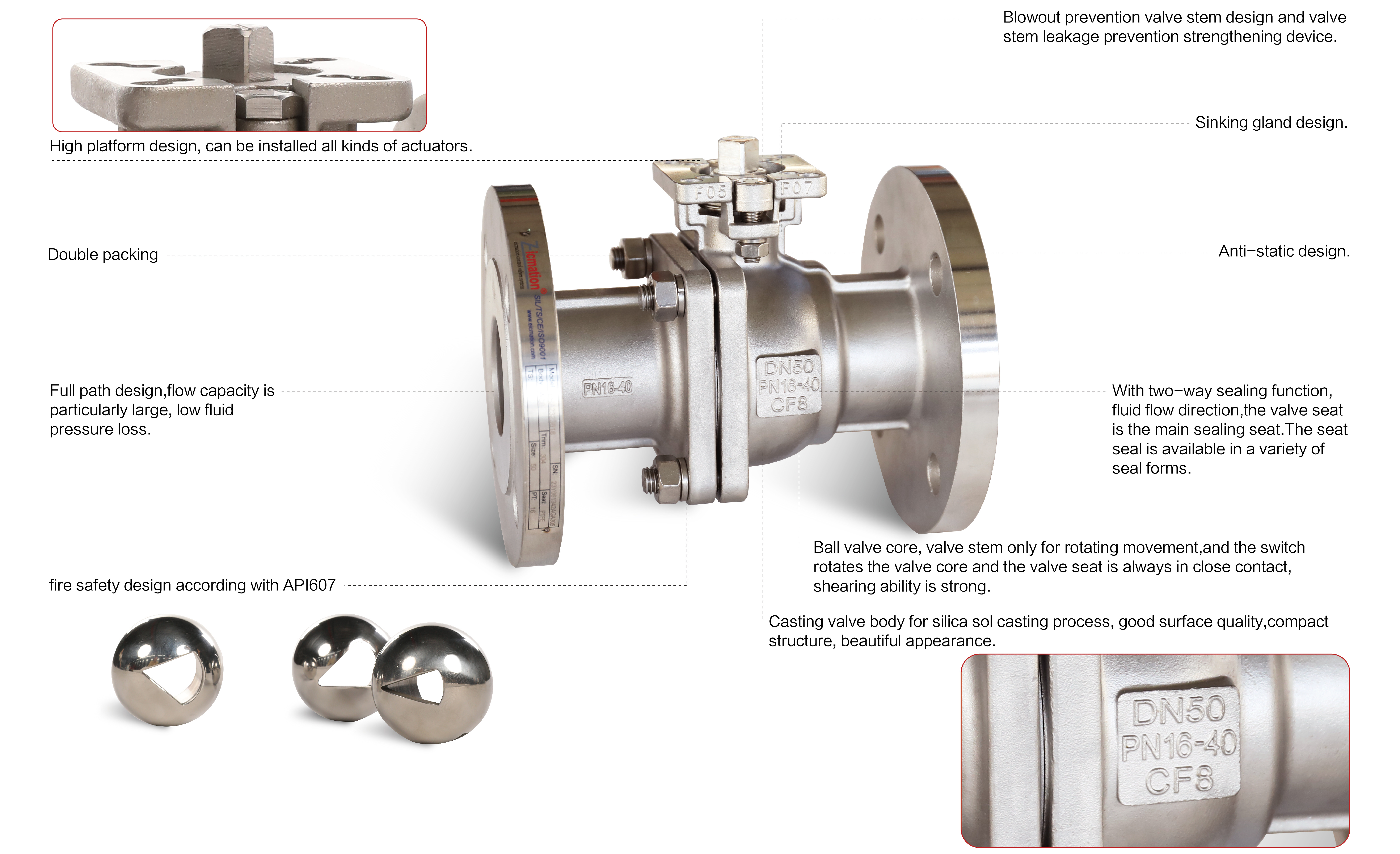

BALL VALVE
Introducation
Ball Valves are designed for reliable Shutoff and precise Control across a wide range of industrial applications. Built with Robust Materials and advanced sealing technology, they provide low torque operation, minimal leakage, and long service life. Their modular design allows easy maintenance and compatibility with various actuators and accessories. AISENBERG offers different ball valve types to meet diverse process conditions, ensuring high performance in demanding environments such as Chemical, Petrochemical, Power, and General Industrial Systems.

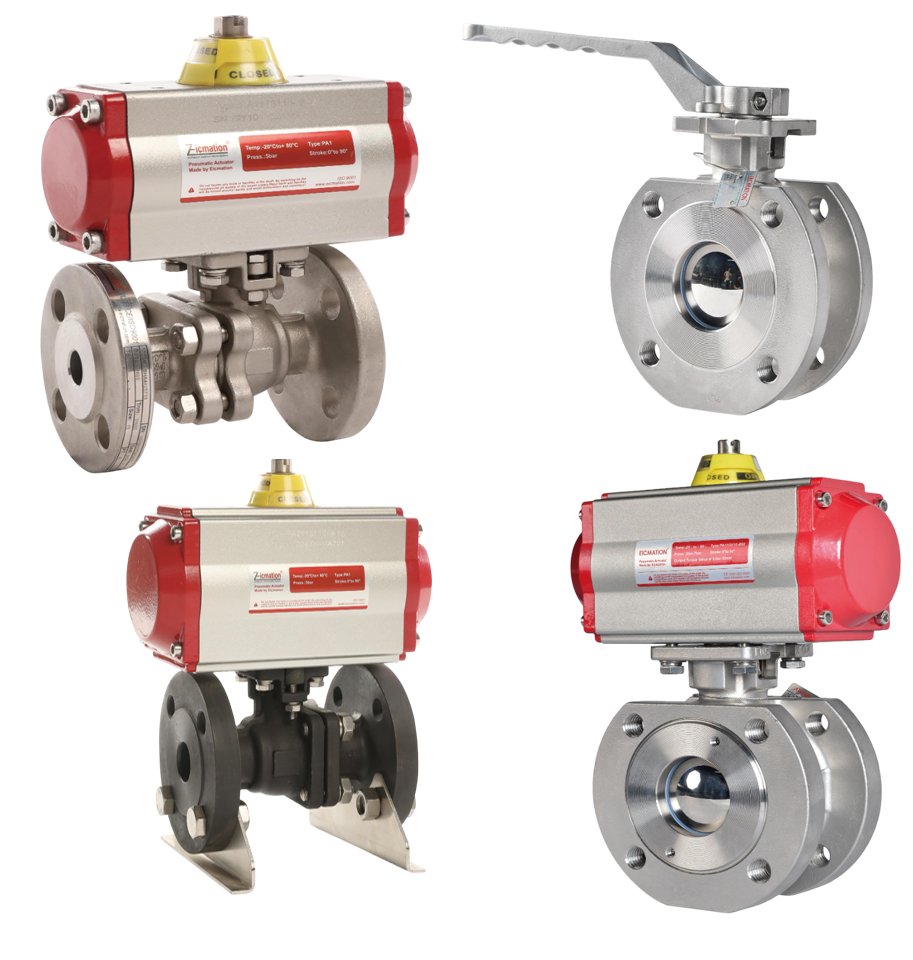

Some Types
of Ball Valve
2PC lined flanged
ball valve
Wafered ball
valve
2PC flanged ball
valve
Three-piece
threaded ball valve
High-pressure
ball valve
3-way flanged
ball valve
GATE VAVLE

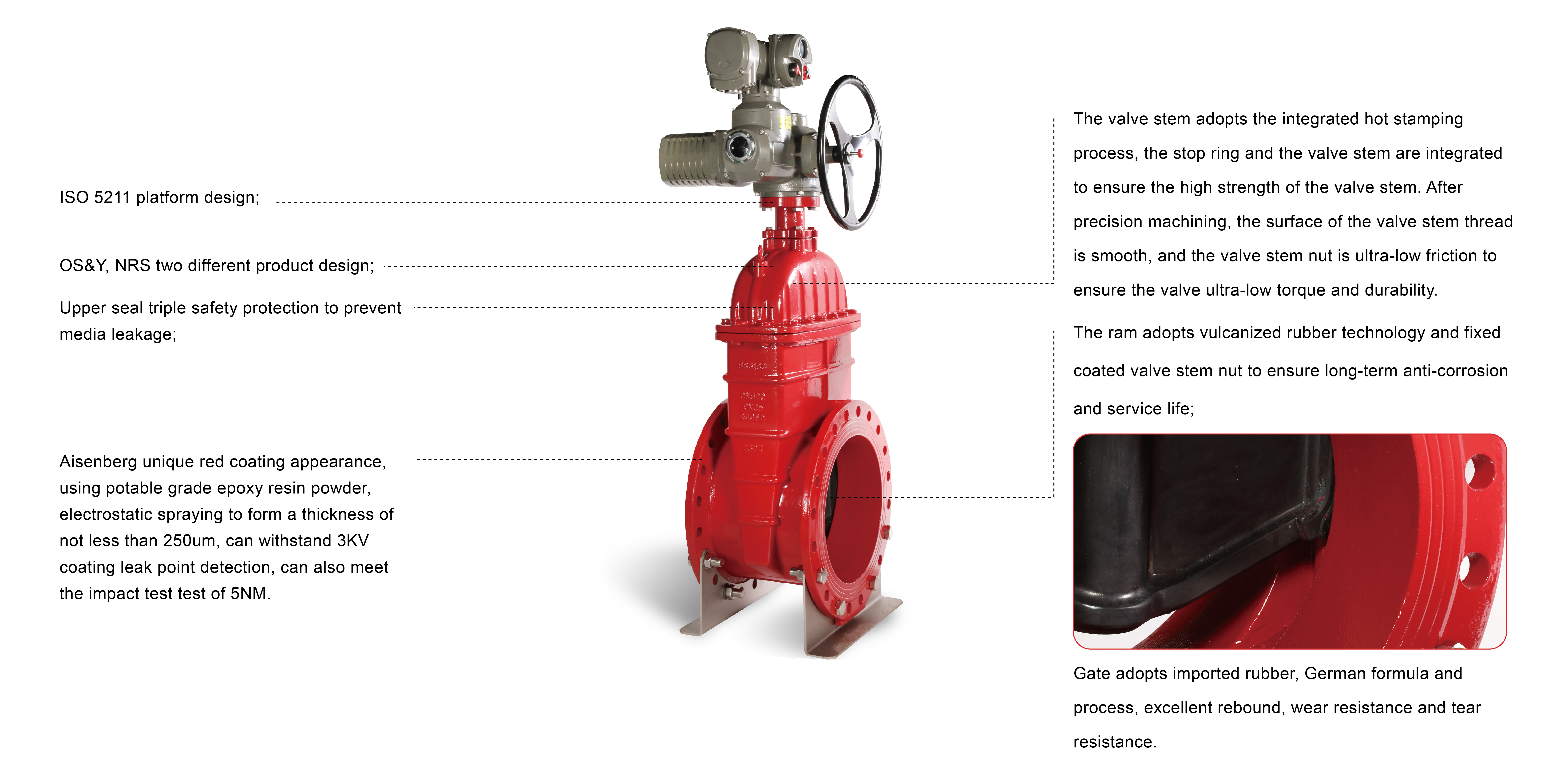

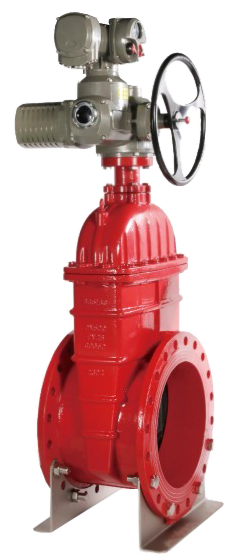

Rubber Gate Valve For Water
Rubber gate valve for water is a kind of valve widely used in the fields of water supply and drainage, sewage treatment, water conservancy engineering, etc. It is mainly used for controlling the flow of water in the pipeline and regulating. Its core feature is the use of rubber sealing material, with good sealing performance, corrosion resistance and long service life.
Technical Parameter
Type: OS&Y (open stem), NRS (concealed stem)
Nominal diameter: DN50~DN1600
Nominal pressure: PN10, PN16, PN25, 150LB
Connection form: flange, clamp
Valve body material: GGG50, CF8,CF8M,CF3M, etc.
Seal material: NBR, EPDM
Leakage level: ASME B16.104 Class VI
Product Structure Description

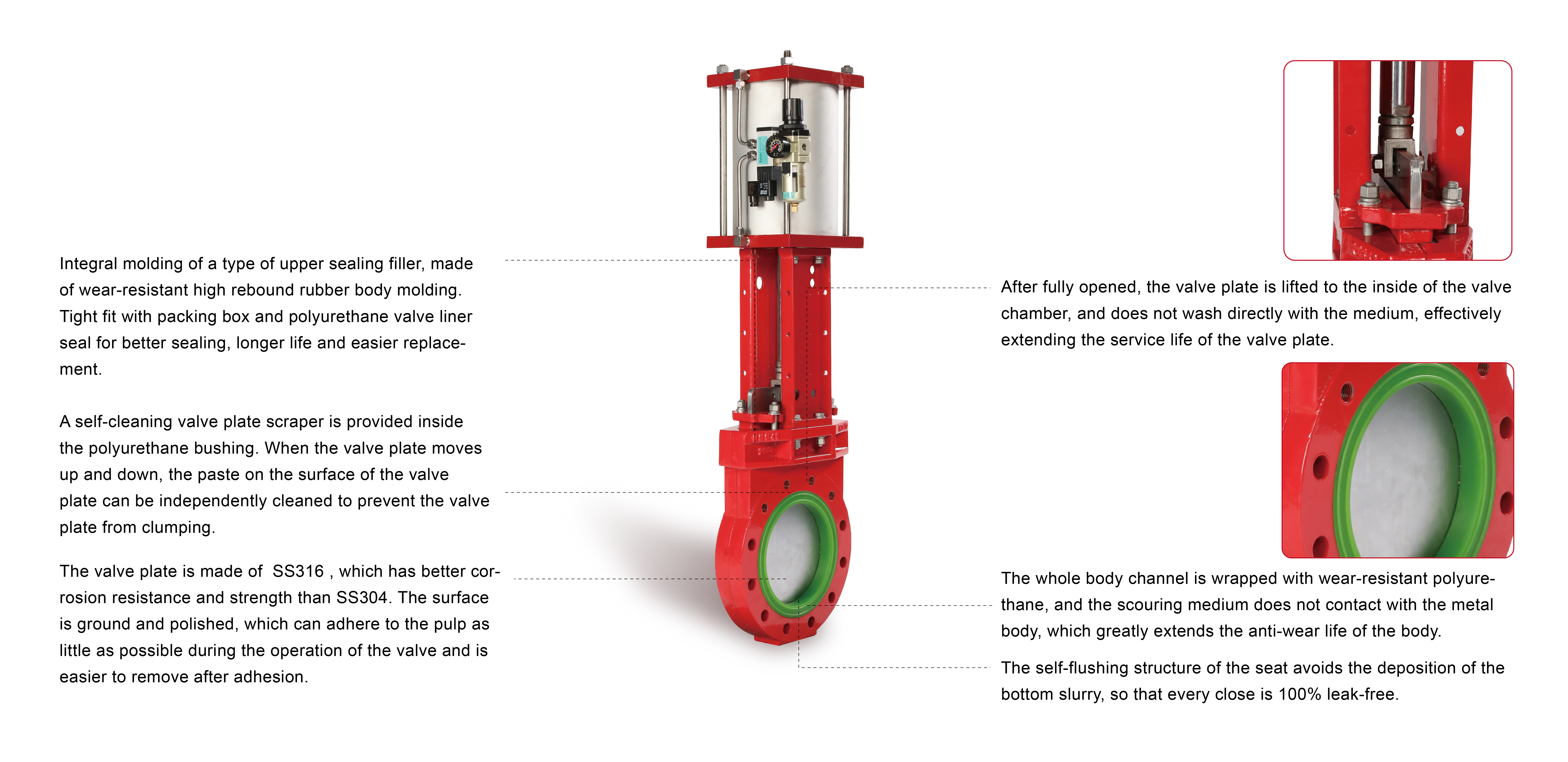

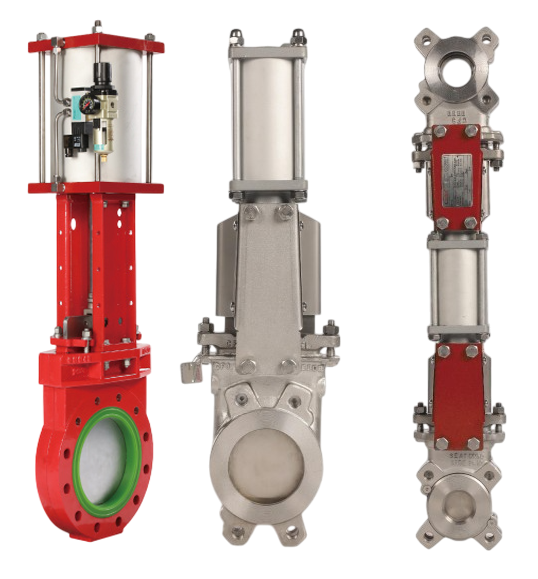

DA series Single-Seated Knife Gate Valve opening and closing member is the gate, the movement direction of the gate is perpendicular to the direction of the fluid, by the fiber material can be cut knife edge gate to cut off the medium, knife gate valve has a small installation space, low working pressure, not easy to accumulate debris, low price. Knife gate valve closed, the sealing surface rely on media pressure to seal, that is, relying on media pressure will be the sealing surface of the gate to the other side of the valve seat to ensure that the sealing surface of the sealing surface, the valve should be installed vertically in the pipeline. Its sealing type can be metal sealing, can also be soft sealing.
Technical Parameter
Nominal diameter: DN50~DN1200
Nominal pressure: PN6-10
Connection form：Clip-type
Valve body material: GGG40, WCB, CF8, CF8M, CF3M, etc.
Filling material: PTFE, flexible graphite, etc.
Actuator: manual, pneumatic piston type, electric power
Single-Seated Knife Gate Valve

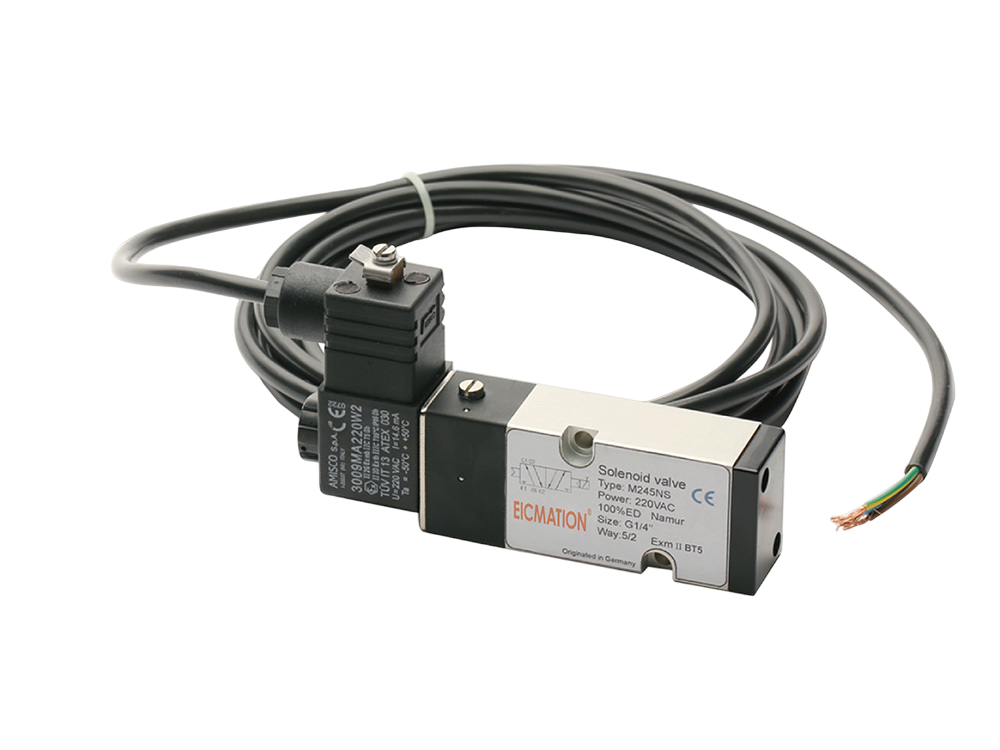

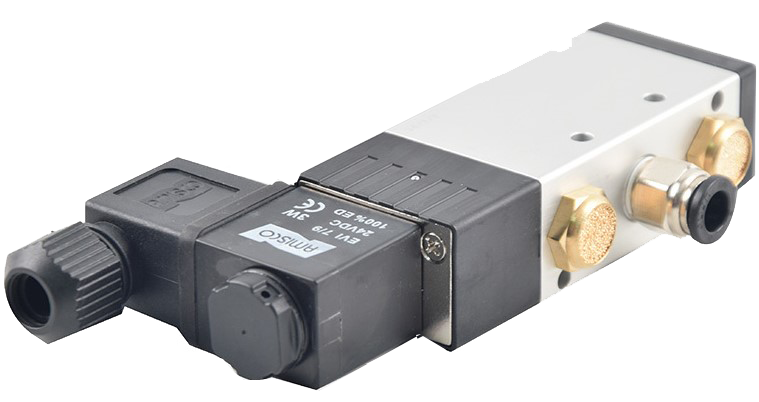

REVERSING SOLENOID VALVE
Solenoid valve (Solenoid Valve) is a kind of automation basic components using electromagnetic force to control the fluid on and off or commutation, through the current signal to drive the spool action, to realize rapid response and remote control. Its core features are compact structure and sensitive action
Technical parameter
Material: die-cast aluminum or stainless steel
Directional solenoid valves: two-position three-way, two-position five-way
Port size: 1/8“ to 1” with quick connector/clamping connector
Filtration: 25µm
Product Structure Description

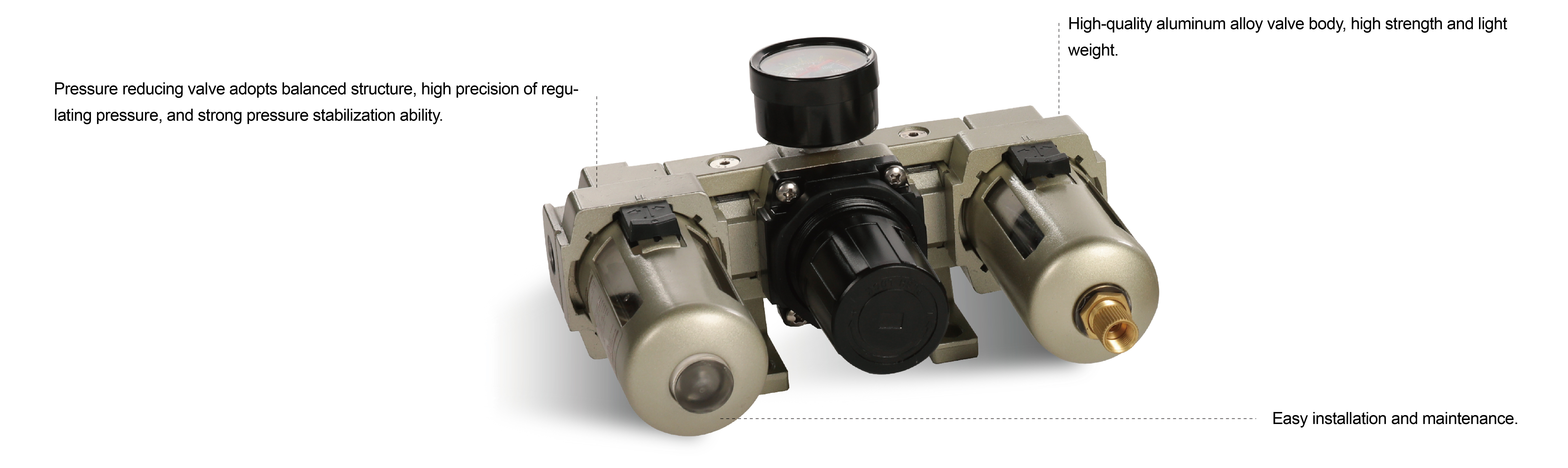

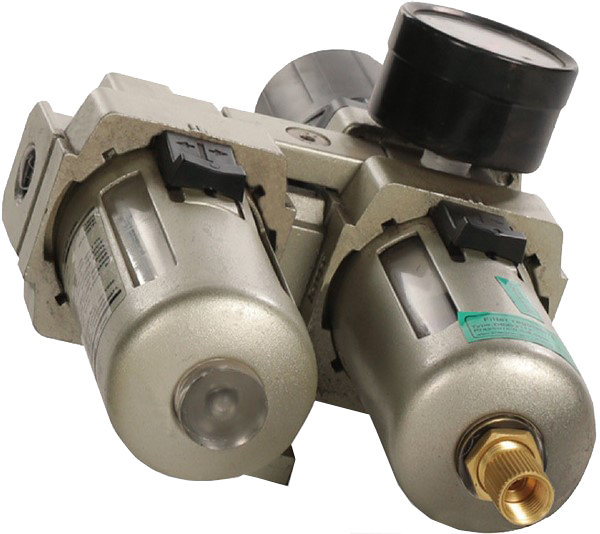

Filter Regulator
Filter pressure reducing valve (Filter Regulator, referred to as F.R.) is a set of filtration, pressure reduction, pressure stabilization function in one of the pneumatic control components are mainly used for compressed air or gas piping system, to ensure that the downstream equipment to obtain a clean, stable pressure of the gas source. Its core role is to protect precision pneumatic components (such as cylinders, solenoid valves) from impurities and pressure fluctuations.
Technical Parameter
Material: Die-Cast Aluminum or Stainless Steel
Specifications: Filter: Single / Duplex / F.R.L
Port Size: 1/8“ to 1” with Quick Connectors / Clamping Connectors
Filtration: 25µm
Product Structure Description
